Grid control data entry.

  • July 27, 2012
  • 13 replies
  • 0 views
D

Is there a way to force the grid control to be in data entry mode.

What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

so basically being able to do data entry directly in the grid.



Thanks

Alan

    13 replies

    Stephen Hjerpe
    • Stephen Hjerpe
    • Participating Frequently
    • 1100 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    Take a lok at the sample gridctl.cbl, compile and execute, place focus in one of the grid cells, you can change the data, use the tab key to get to the next cell, and change the data there.

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    Thanks for your help....Close to what i need...

    Is it possible to have the enter key act like the tab key within the grid? ie if the user hits the enter key instead of tab i want  both of the to act the same.

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    It looks like you should be able to inquire FINISH-REASON on the grid on either the MSG-CANCEL-ENTRY or MSG-FINISH-ENTRY events.  The value returned is a signed integer, and in acugui.def, there is a value - GRFR-ENTER-KEY - that indicates that the enter key was hit.  You can move focus to the next cell then.

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    It looks like you should be able to inquire FINISH-REASON on the grid on either the MSG-CANCEL-ENTRY or MSG-FINISH-ENTRY events.  The value returned is a signed integer, and in acugui.def, there is a value - GRFR-ENTER-KEY - that indicates that the enter key was hit.  You can move focus to the next cell then.

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    also  i want to be able to skip over certain cells. i.e. enter data in cell 1, 2,3 skip over 4 enter in cell 5,6 skip the rest of the row and go to next  row skipping to cell 5,6 skip next row enter in cell 5, 6 etc....is this possible.

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    also  i want to be able to skip over certain cells. i.e. enter data in cell 1, 2,3 skip over 4 enter in cell 5,6 skip the rest of the row and go to next  row skipping to cell 5,6 skip next row enter in cell 5, 6 etc....is this possible.

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

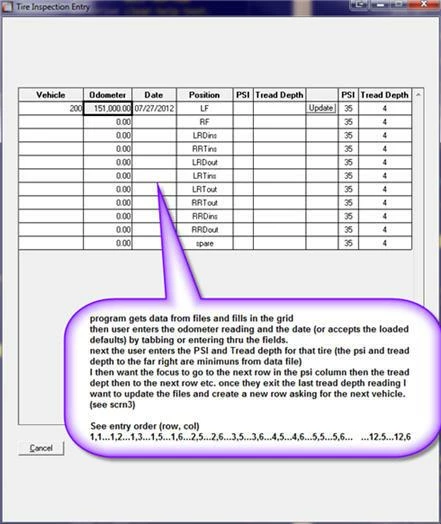

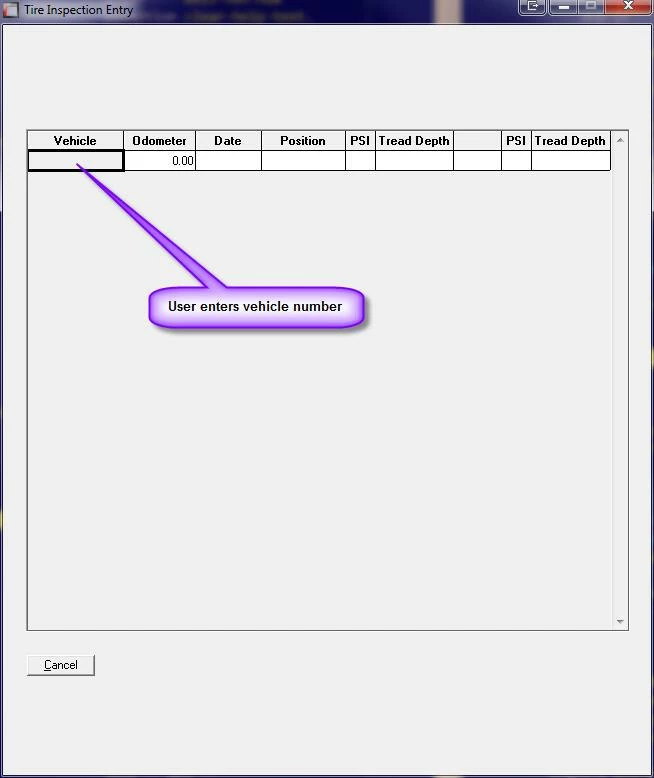

    Here are some screen shots of what I'm attempting to accomplish

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    Screen shot 2



    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    Screen shot 2



    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

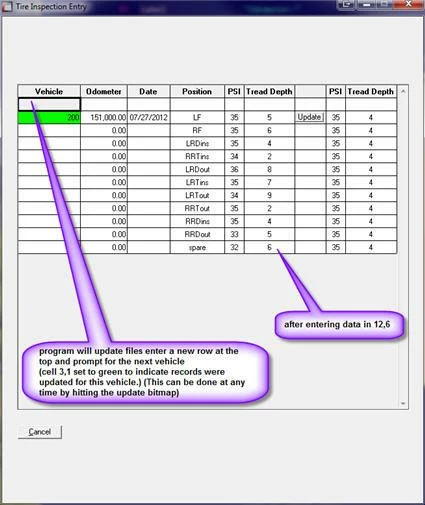

    Screen shot 3

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    Screen shot 3

    Stephen Hjerpe
    • Stephen Hjerpe
    • Participating Frequently
    • 1100 replies
    • July 27, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    Not sure if you are using AcuBench, when you design the grid, you can set cell settigs, and within that dialog, you can set a cell to be protected (meaning it cannot be entered)

    D
    • Dominique SacreRocketeer
    • Author
    • Rocketeer
    • 19312 replies
    • July 30, 2012

    Is there a way to force the grid control to be in data entry mode.

    What I'm trying to do is have the user enter data in one cell then go to next cell and enter data then the next etc.

    so basically being able to do data entry directly in the grid.



    Thanks

    Alan

    here is an example from a programm we use to place the cursor in a grid after enter some data:

         ***********************************************************

          move-cursor section.

              inquire pos-grid, last-row = lrow,

                      pos-grid, cursor-y = i-row,

                      pos-grid, cursor-x = i-col.

              evaluate event-data-1

                 when 15

                      inquire pos-grid(event-data-2, 15),

                                       cell-data = i-term

                      evaluate i-term(3:1)

                         when "."

                              move 16 to i-col

                         when other

                              compute i-row = i-row 1 end-compute

                              if      i-row > lrow

                                 move lrow to i-row

                              end-if

                      end-evaluate

                 when 16

                      compute i-row = i-row 1 end-compute

                      move    15 to   i-col

                      if      i-row > lrow

                         move lrow to i-row

                      end-if

                 when 17

                      compute i-row = i-row 1 end-compute

                      move    15 to   i-col

                      if      i-row > lrow

                         move lrow to i-row

                      end-if

              end-evaluate.

              modify pos-grid, cursor-y = i-row,

                               cursor-x = i-col.

          move-cursor-ende.

              exit.

          move-cursor-e.

         ***********************************************************
