I need to have cascading DropListBox's for a menu that builds a string. For example if DropListBox1 has three plus options it will display DropListBox2 to DropListBox4 below it depending on selection. Each subsequent DropListBox will need to hide/reveal the appropriate DropListBox selection.  I'm unsure if this would best be done by having multiple sub DropListBox's and have them display or hide depending on previous menu selection like the bad example image or if I should propagate each DropListBox with an array.   Which would be more efficient?  I've been unsuccessful in both hiding / revealing and propagating with arrays.  The goal of the dialog box is to create a string that it sends to the terminal. I'm an end user, not a developer but I am putting in earnest effort to learn.

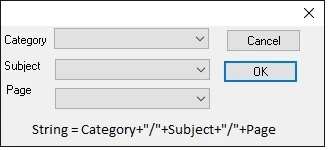

My current partially functional dialog looks like:

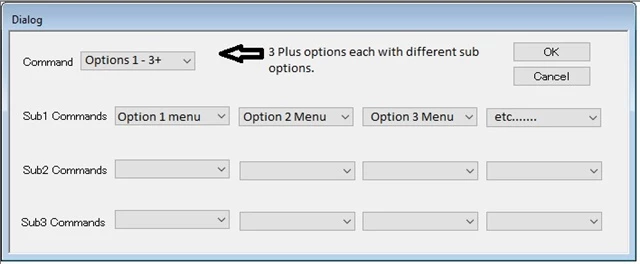

Bad Example:

I've decided to go with a two dimensional array, but I'm stuck on how to propagate the DropDownList from an Array range. Selecting a single item like arr_G(5, 0) works fine, but how do i add the range of arr_G(0, 0) to arr_G(5, 0) to "DropListBoxCate"?

Sub Main
Dim arr_G(5, 93) As Variant ' 93 actual count on some subjects

arr_G(0, 0) = "Category 0"
  arr_G(0, 1) = "Subject 1"
  arr_G(0, 2) = "Subject 2"
  arr_G(0, 3) = "Subject 3"
arr_G(1, 0) = "Category 1"
  arr_G(1, 1) = "Subject 1"
  arr_G(1, 2) = "Subject 2"
  arr_G(1, 3) = "Subject 3"

arr_G(2, 0) = "Category 2"
  arr_G(2, 1) = "Subject 1"
  arr_G(2, 2) = "Subject 2"
  arr_G(2, 3) = "Subject 3"

arr_G(3, 0) = "Category 3"
  arr_G(3, 1) = "Subject 1"
  arr_G(3, 2) = "Subject 2"
  arr_G(3, 3) = "Subject 3"
arr_G(4, 0) = "Category 4"
  arr_G(4, 1) = "Subject 1"
  arr_G(4, 2) = "Subject 2"
  arr_G(4, 3) = "Subject 3"
arr_G(5, 0) = "Category 5"
  arr_G(5, 1) = "Subject 1"
  arr_G(5, 2) = "Subject 2"
  arr_G(5, 3) = "Subject 3"

Begin Dialog AddDialog 215, 74, "command"
DropListBox  35, 1, 103, 16, ""+chr$(9)+arr_G(0, 0)+chr$(9)+arr_G(1, 0)+chr$(9)+arr_G(2, 0)+chr$(9)+arr_G(3, 0)+chr$(9)+arr_G(4, 0)+chr$(9)+arr_G(5, 0), .DropListBoxCate
OkButton 148, 21, 50, 14
CancelButton 150, 2, 50, 14
Text 2, 4, 31, 13, "Category"
Text 2, 20, 25, 10, "Subject"
DropListBox 36, 20, 103, 16, arr_G(5, 1), .DropListBoxSubj
Text 3, 35, 19, 10, "Page"
DropListBox 36, 38, 103, 16, ""+chr$(9)+"1"+chr$(9)+"2"+chr$(9)+"3"+chr$(9)+"4"+chr$(9)+"5"+chr$(9)+"6"+chr$(9)+"7"+chr$(9)+"8"+chr$(9)+"9", .DropListBoxPage
End Dialog

dim dlg as AddDialog
ret% = Dialog(dlg)

End Sub

Hi David,

I'm having a look.

In order to dynamically change the various options you have to create a Function to handle Dialog events.

In your Begin Dialog statement you append a    , .DialogHandler     after the TitleBar string.

e.g.
      Begin Dialog StringBuilder 374, 182, "My Dynamic Dialog", .DialogHandler

Then you create a function to handle the events.

e.g.
      Function DialogHandler(id$, action%, suppvalue&)

           Select Case action%
                      Case 1 'initialize dialog controls
                      Case 2 'button was pressed, radio, checkbox changed#
                      Case 3 'text or combo box changed
                      Case 4 'control focus changed
                      Case 5 'idle
           End Select
      End Function

So you initialise your Category drop down in Case 1, then when you select your Category in the first drop down this will trigger Case 2 (where you execute your code based on the value selected in Category drop down), selecting a value in the Subject list with also trigger Case 2 and you then populate your Page values based on the Subject selected in the Subject control.

I should have something by tomorrow.

Note: This is really way beyond scope for the forum and really you should be turning towards our consultants. But given the lack of a sample on here I think we should go ahead and get one out there.

Tom

Tom,

  Thanks for pointing out that I'm posting these type of questions to the wrong forum. I'll redirect my questions to Stack Overflow if too far off focus for this group.  I was actually just about to delete my post because I found all the reference information I needed on the link https://portal.microfocus.com/s/article/KM000008384?language=en_US you provided me some time ago.  The manuals help some, but my limited scope of knowledge makes them difficult to use as reference, however the eb-samples files had the example named  DialogUpdates.ebm that gave me the pointers and syntax I needed to know.  I've restructured my code with what I learned from the sample and its working perfectly. Its a bit sloppy at the moment, but after I clean it up, I'll post in this discussion thread for any other end users overstepping their areas of responsibility like myself.   Each of the questions you have answered previously have helped point me in the right direction and bettered my understanding.

Thank You,

David

Hi David,

It's refreshing to see that you pushed ahead and are willing to do the donkey work. Extra! Basic dialogs are not for the faint of heart (or perseverance). Handling the events is not trivial and hence to recommendation to use consulting services.

As for Stack Overflow, it is a great resource, I often use it when I'm trying to figure out how to use Win32API calls in both Extra! Basic and 64-bit VBA.

I had a play with this and this is what I came up with. I'm using an ini file to store the Category/Subject and Page info. My ini is located at c:\\temp\\StringBuilderIni.ini (set in the GetList function below)

My ini looks like this, where the [ListCat] stores a list of all the Categories (and is loaded at initialisation, with the default Category being the first in the list), [My Categories] stores info for each category listed in the [ListCat] section (and the subject associated with the first Category as loaded at initialisation) and finally there are individual Category section which list the number of pages associated with each Subject.

    [ListCat]
    MyCategories=Category1, Category2, Category3, Category4

    [MyCategories]
    Category1=SubjectA,SubjectB,SubjectC
    Category2=SubjectB,SubjectC,SubjectD
    Category3= SubjectD, SubjectE
    Category4=SubjectV, SubjectW,SubjectX,SubjectY,SubjectZ

    [Category1]
    SubjectA=8
    SubjectB=2
    SubjectC=7

    [Category2]
    SubjectB=8
    SubjectC=14
    SubjectD=12

    [Category3]
    SubjectD=7
    SubjectE=4

    [Category4]
    SubjectV=13
    SubjectW=12
    SubjectX=10
    SubjectY=30
    SubjectZ=93

Then in Extra Basic I have the following code.

---------------------------------------------------------------------------------------------------------------------------------------

Declare Function GetPrivateProfileString Lib "KERNEL32" Alias "GetPrivateProfileStringA" _
(ByVal lpApplicationName as String, ByVal lpKeyName As String, ByVal lpDefault As String, _
ByVal lpReturenedString as String, ByVal nSize as Long, ByVal lpFileName as String) as Long

Declare Function DialogHandler(ID$, Action%, SuppVal&) as Integer
Declare Function GetList(Section as String, Key as String) as String

' NOTE it is very important to define the buffer size when
' calling a Winapi function, if you do not define it defaults
' to zero and then your Winapi call will not work. It will
' always return zero.

Const Buffer_size = 255
Const MySeperator = ","

Dim MyCategory() as String
Dim MySubject() as String
Dim MyPage() as String
Dim MyOptions() as String

Sub Main

Begin Dialog StringBuilder 374, 182, "My Dynamic Dialog", .DialogHandler
DropListBox 4, 6, 81, 16, "Category1", .Category
StaticComboBox 89, 6, 112, 153, "", .Subject
StaticComboBox 200, 6, 102, 154, "", .Page
PushButton 311, 4, 49, 17, "&Send String", .SendString
CancelButton 311, 26, 49, 17
End Dialog

Dim myStringBuilder as StringBuilder, ret as Integer
ret% = Dialog(myStringBuilder)

End Sub

Function DialogHandler(id$, action%, suppvalue&)

Dim myList as String, x as Integer, SeperatorLocation as Integer, MyPageCount as String, PageCount as Integer

select case action%
Case 1 'initialize dialog controls

MyList = GetList("ListCat", "MyCategories")
x=0
If InStr(1, MyList, MySeperator) = 0 then
ReDim Preserve myCategory(0)
myCategory(0) = Trim(MyList)
Else
Do While InStr(1, MyList, MySeperator) > 1
myList = LTrim(MyList)
ReDim Preserve MyCategory(x)
SeperatorLocation = InStr(1, MyList, MySeperator)
myCategory(x)=Left(MyList, SeperatorLocation-1)
MyList = Right(MyList, Len(MyList)-SeperatorLocation)
x=x+1
Loop
ReDim Preserve myCategory(x)
myCategory(x) = LTrim(Right((MyList), Len(MyList)))
End If
DlgListBoxArray DlgControlID("Category"), myCategory
DlgValue DlgControlID("Category"),0
MyList = GetList("MyCategories", myCategory(DlgValue(DlgControlID("Category"))))
x=0
If InStr(1, MyList, MySeperator) = 0 then
ReDim Preserve MySubject(0)
MySubject(0) = Trim(MyList)
Else
Do While InStr(1, MyList, MySeperator) > 1
myList = LTrim(MyList)
ReDim Preserve MySubject(x)
SeperatorLocation = InStr(1, MyList, MySeperator)
MySubject(x)=Left(MyList, SeperatorLocation-1)
MyList = Right(MyList, Len(MyList)-SeperatorLocation)
x=x+1
Loop
ReDim Preserve MySubject(x)
MySubject(x) = Ltrim(Right((MyList), Len(MyList)))
End If
DlgListBoxArray DlgControlID("Subject"), MySubject
DlgListBoxArray DlgControlID("Page"), myOptions

Case 2 'button was pressed, radio, checkbox changed

Select Case id$
Case "Category"
MyList = GetList("MyCategories", myCategory(DlgValue(DlgControlID("Category"))))
x=0
If InStr(1, MyList, MySeperator) = 0 then
ReDim Preserve MySubject(0)
MySubject(0) = Trim(MyList)
Else
Do While InStr(1, MyList, MySeperator) > 1
myList = LTrim(MyList)
ReDim Preserve MySubject(x)
SeperatorLocation = InStr(1, MyList, MySeperator)
MySubject(x)=Left(MyList, SeperatorLocation-1)
MyList = Right(MyList, Len(MyList)-SeperatorLocation)
x=x+1
Loop
ReDim Preserve MySubject(x)
MySubject(x) = Ltrim(Right((MyList), Len(MyList)))
End If
DlgListBoxArray DlgControlID("Subject"), MySubject
DlgListBoxArray DlgControlID("Page"), myOptions

Case "Subject"
MyPageCount = GetList(myCategory(DlgValue(DlgControlID("Category"))), mySubject(DlgValue(DlgControlID("Subject"))))
PageCount = CInt(MyPageCount)
ReDim Preserve MyPage(PageCount-1)
For i = 0 to PageCount -1
MyPage(i)= i+1
Next i
DlgListBoxArray DlgControlID("Page"), MyPage

Case "SendString"
If DlgValue(DlgControlID("Category")) = -1 or DlgValue(DlgControlID("Subject")) = -1 or DlgValue(DlgControlID("Page")) = -1 then
DialogHandler = TRUE ' 'prevent MainDialog from closing
Else
Msgbox myCategory(DlgValue(DlgControlID("Category"))) & ":" & mySubject(DlgValue(DlgControlID("Subject"))) & ":" & myPage(DlgValue(DlgControlID("Page"))), 64, "My Selected bits"
DialogHandler = TRUE ' 'prevent MainDialog from closing
End If
Case Else

End Select

'Other cases are available to handle changes
'in textboxes or lists - see help for "begin dialog".
Case 3 'text or combo box changed
Case 4 'control focus changed
Case 5 'idle

End Select

End Function

Function GetList(Section as String, Key as String) as Variant

Dim x, nSize as long
Dim FileName as string, Nodename as string, MyList as String

x = -999

FileName = "c:\\temp\\StringBuilderIni.ini"
Dim Default as String
Default = "notFound"
Dim RetStr as String*Buffer_size

' Initialize the buffer so it will return more than zero
' bytes
'
nsize = Buffer_size

x = GetPrivateProfileString(Section, Key, Default, RetStr, nSize, FileName)
MyList = mid$(RetStr, 1, x)

GetList = MyList

End Function

---------------------------------------------------------------------------------------------------------------------------------------

It likely works in a similar fashion to what you now have, but it demo's how to avoid the multi-dimensional array and it enables one to change the Categories, Subjects and Pages without having to touch the macro.

Looking forward to seeing what you eventually end up with.

Tom
