Net Express and MS Excel

I have a program that reads MS Excel spreadsheets and it works fine when running on workstations.  I lost my development system and the new one now uses Windows Server 2012 and no longer is able to read the spreadsheet.  I am running Net Express 5.1

Can you please provide more detail as to what you mean by you cannot read the spreadsheet?

How are you reading the spreadsheet in your program?

If you are using the native OLE class library syntax like:

class-control.
    MSExcel is class "$OLE$Excel.Application".

  *>   Create a new instance of Microsoft Excel
       invoke MSExcel "new" returning ExcelObject

  *>   Make Excel visible
       invoke ExcelObject "setVisible" using by value 1

Then you will have to install the Microsoft Office Excel components on the Server machine.

The required registered COM library would be named something like: Microsoft Excel nn.n Object Library where nn.n is the version of Excel.

Thanks

Yes, that is the syntax that I use.  I hate to appear stupid, but this isn't something that I know how to do.  This is for Excel 2007.  Any help would be appreciated.

Thank you.

What is the error that you are actually receiving in your program?

Do you have Excel installed directly on this server?

These are the commands that I run.

invoke MSExcel "new" returning ExcelObject

invoke ExcelObject "setVisible" using by value 0.

invoke ExcelObject "getWorkBooks"
returning WorkBooksCollection

*> Open a specific spreadsheet file
invoke WorkbooksCollection "Open"
using d-Excel-File-Name
returning Workbook.

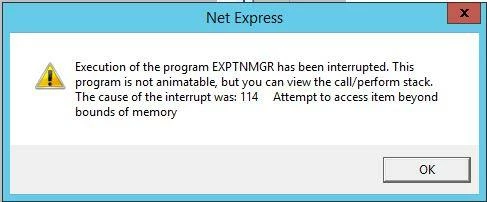

I attached the message as a JPG

Thanks again.

Oh, I forgot, yes, it is installed on the server.  Windows 2012.

On which statement is the error occurring?

The error indicates that a 114 error occurs in the NX Exception handler class. This normally indicates a memory or parameter passing problem.

When you execute the following is there a value returned in ExcelObject?

invoke MSExcel "new" returning ExcelObject

Can you show me what the MSExcel definition looks like under Class-control?

Do you know what wrappack level you have installed for Net Express?

The WrapPack is #11.

Yes, I do get values returned when I invoke "new".

The Class-Control has the following entry: MSExcel is class "$OLE$Excel.Application"

It is this statement that causes the eror.

invoke WorkbooksCollection "Open"
using d-Excel-File-Name
returning Workbook.

What is the value of d-Excel-File-Name at the time the Open method is invoked?

It should point to an actual excel file on disk:

Example:

01 d-Excel-File-Name    pic x(256) value z"C:\\temp\\myexcel\\xlsx".

Note that it uses the null terminator z string literal as Excel expects the name to be null terminated.

Does your file exist on disk in the location your program specifies?

Yes, it does exist and it does point to the files directly.  "C:\\RND60\\base\\Apollo Inventory Master.xlsx" .

I do have a routine that puts a null terminator at the end of the file name.

perform varying ix from 255 by -1 until ix < 1
    if d-Excel-File-Name(ix:1) not = " "
        add 1 to ix
        MOVE X"00" TO d-Excel-File-Name(ix:1)
        move 1 to ix
    end-if
end-perform

So I setup a VM that has the following installed:

Windows Server 2012 R2
Office Professional 2007
Server for COBOL 5.1 with Update 11

I created a test program that actually uses the exact location and name of your Excel file.
My demo works fine and I can open the Workbook without a problem.
The demo also checks that the objects being used are not null after they are created.

Can you please compile this demo program and try running it on your system?

I get the same error as before when it hits this statement:

           invoke WorkbooksCollection "Open"

                        using d-Excel-File-Name

                                           returning Workbook.

It appears like it may be an issue with this specific .xlsx file or its location..

Can you create a very basic Excel file and try to open it using the test program?
