Hello group!

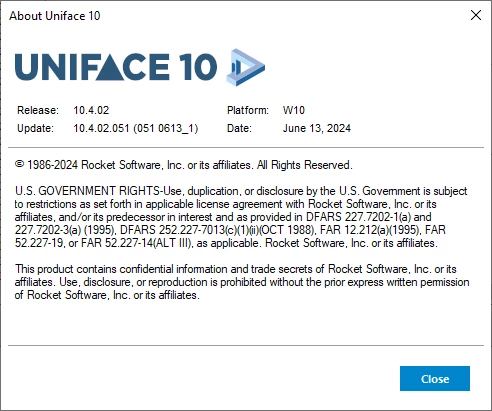

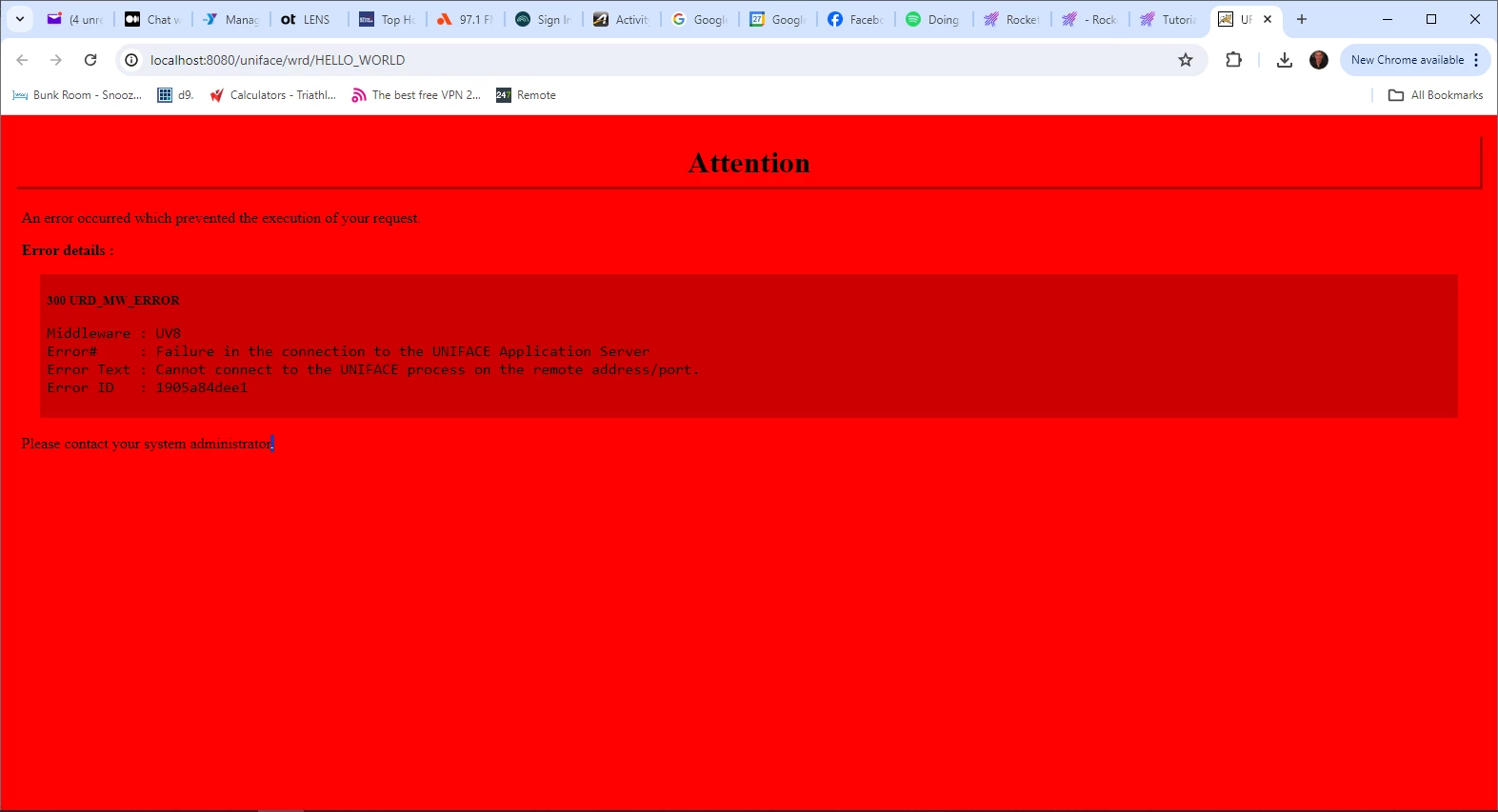

I am a newbie here and I just downloaded  Uniface 10 and created my first Project as I followed the HELLO_WORLD sample.  Am I missing something with the installation, license issue, or network credentials?    Below are the screenshots of my Uniface 10, the red screen with the errors and the setting in the urouter.asn file.

Thank you!

-Peter G

********************************************************** urouter.asn **********************************

[SETTINGS]
$putmess_logfile = usyslog:urouter%p.log
$priv_mon_user = UnifaceServer
$license_options   LM_LICENSE_FILE=USYSLIC:, LM_LOAD=S

; Connection setting $default_net: Specify the default network path for clients, Uniface servers, or Uniface Routers
; More information: https://documentation.uniface.com/10/uniface/configuration/tlsConfiguration.htm
;     TLS:+<TLS_PORT_NUMBER>:CERT_PROFILE||| = To use a secure connection (TLS connection with self signed certificate)
;     TCP:+13001||| = To use TCP connection (default)
$default_net = TCP:+13001|||

[SERVERS]
; =========================================================================
; Uniface servers
; =========================================================================
default = "userver.exe" /adm="C:\\Program Files\\Rocket Uniface 10 Community Edition\\uniface\\adm" /maxidle=3m
; For Uniface WebApplication Server
wasv = "userver.exe" /dir="C:\\Users\\gonzalp\\Rocket Uniface 10 Community Edition\\project" /adm="C:\\Program Files\\Rocket Uniface 10 Community Edition\\uniface\\adm" /asn=wasv.asn
; For debug purposes
debug = "userver.exe" /max=1 /dir="C:\\Users\\gonzalp\\Rocket Uniface 10 Community Edition\\project" /adm="C:\\Program Files\\Rocket Uniface 10 Community Edition\\uniface\\adm" /deb=localhost+13002:wait /asn=wasv.asn

[NET_SETTINGS]
; Connection setting CERT_PROFILE: Specify your certificate profile when you want to use a certificate with your TLS connection.
; More information: https://documentation.uniface.com/10/uniface/configuration/tlsConfiguration.htm
;     Change the paths in the line below to point to your certificate and key files. Afterwards uncomment the configuration line to enable the certificate with TLS.
;     Leave the line commented to keep using TCP. (default)
; CERT_PROFILE verify_server=yes, server_certificate=<CERTIFICATE_FILE_PATH>, server_key=<PRIVATE_KEY_FILE_PATH>

------------------------------
Peter Gonzalez
St. Louis, MO US
------------------------------

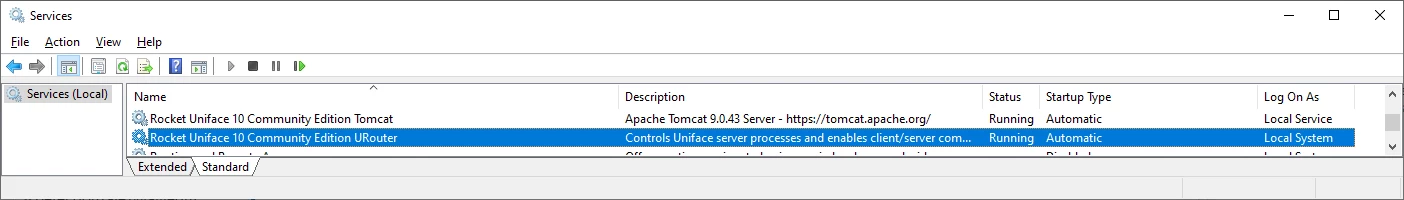

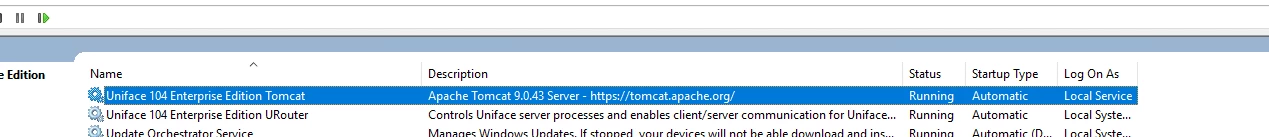

Look if this services are running

@Juliano Anoar Haoach Garcia I guess the Tomcat service is running, because there is an error message in the browser.

But indeed there is a good chance that the routeur is not running, or is not responding on the good port.

@Peter Gonzalez you should have a log with proper explaination in it (urouteurxxxx.log ou wasvxxxxx.log)

Look if this services are running

@Juliano Anoar Haoach Garcia I guess the Tomcat service is running, because there is an error message in the browser.

But indeed there is a good chance that the routeur is not running, or is not responding on the good port.

@Peter Gonzalez you should have a log with proper explaination in it (urouteurxxxx.log ou wasvxxxxx.log)
