Problem

In Enterprise Analyzer (EA) Workspace options for PL/I it is possible to configure the margins for PL/I programs. Is it possible to force EA to make use of these settings?

Resolution

As of EA 3.5 Hot Fix, it is possible to change the margins for PL/I programs. EA tries to auto-detect the margins and will default to the standard 2, 72 margin setting. To force EA to take the customer defined margins, there is a now a new workspace setting that needs to be used.

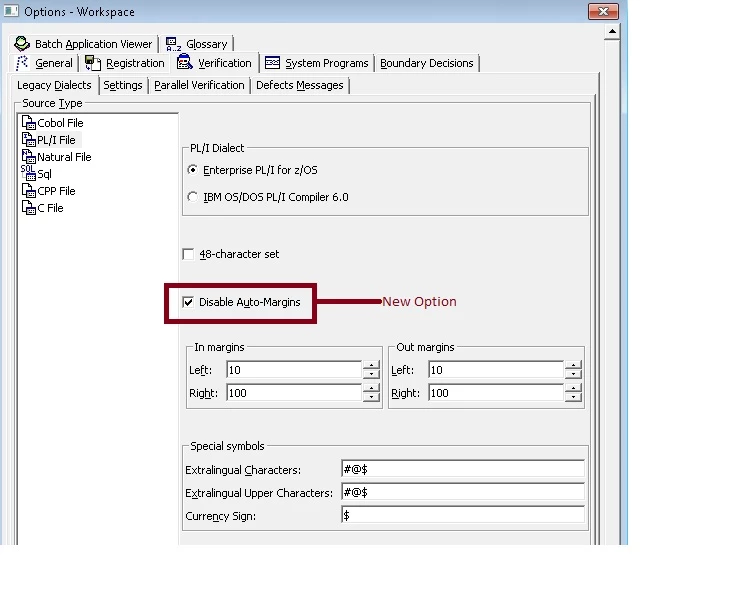

It is called "Disable Auto-Margins" and this needs to be checked so that EA will take the user defined settings. See below for a screenshot showing the new option turned on and custom margins.

Incident #2670010
