runtime error on DialogSystem on Netexpres 5.120.0014 on W11

  • December 2, 2024
  • 3 replies
  • 2 views
G

at a station with the SO

Edición Windows 11 Enterprise
Versión 24H2
Instalado el ‎27/‎11/‎2024
Versión del sistema operativo 26100.2454
Experiencia Paquete de experiencia de características de Windows 1000.26100.36.0

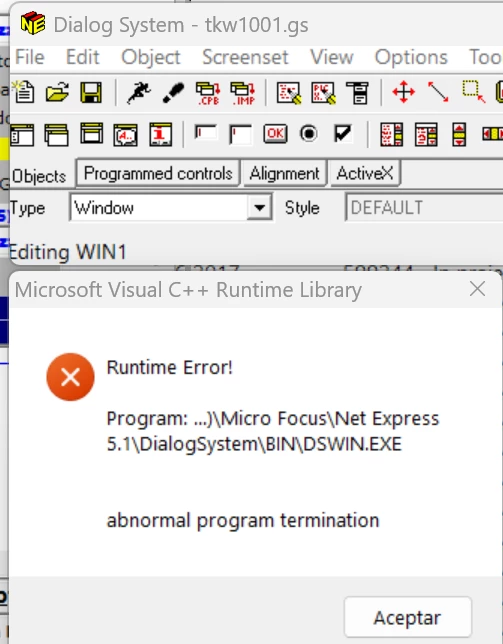

When I try to generate in RS format, the attached error appears.



------------------------------
GREGORIO ARROYO GONZALEZ
Gerente
Rocket Forum Shared Account
------------------------------

    3 replies

    Chris Glazier
    Forum|alt.badge.img+2
    • Chris GlazierModerator
    • Moderator
    • 3697 replies
    • December 2, 2024

    at a station with the SO

    Edición Windows 11 Enterprise
    Versión 24H2
    Instalado el ‎27/‎11/‎2024
    Versión del sistema operativo 26100.2454
    Experiencia Paquete de experiencia de características de Windows 1000.26100.36.0
    When I try to generate in RS format, the attached error appears.



    ------------------------------
    GREGORIO ARROYO GONZALEZ
    Gerente
    Rocket Forum Shared Account
    ------------------------------

    Hi Gregorio,

    I have been able to replicate this here just by performing a Save As on a screenset.

    I will look into it and update you with my findings.



    ------------------------------
    Chris Glazier
    Principal Technical Support Specialist
    Rocket Forum Shared Account
    Sunapee NH United States
    ------------------------------
    Chris Glazier
    Forum|alt.badge.img+2
    • Chris GlazierModerator
    • Moderator
    • 3697 replies
    • December 2, 2024

    at a station with the SO

    Edición Windows 11 Enterprise
    Versión 24H2
    Instalado el ‎27/‎11/‎2024
    Versión del sistema operativo 26100.2454
    Experiencia Paquete de experiencia de características de Windows 1000.26100.36.0
    When I try to generate in RS format, the attached error appears.



    ------------------------------
    GREGORIO ARROYO GONZALEZ
    Gerente
    Rocket Forum Shared Account
    ------------------------------

    This appears to be caused when the File Open/Save/Save As common dialog boxes are being displayed using the Net Express Dialog System screen painter. The Dialog System screen painter in Visual COBOL works just fine.

    A couple workarounds.

    Open up a NX command prompt and run the screen painter using the following command:

    DSWIN /RS screenset-name.gs

    This will output a file screenset-name.RS.

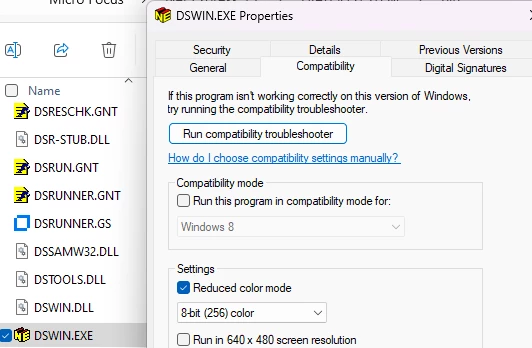

    You can also use File Explorer to change the compatibility mode of the DSWIN.EXE program under Properties-->Compatibility.
    You need to change the option Reduced color mode to 8-bit (256) color.

    You should then be able to save the file from the screen painter itself but don't use the drop-down list to change directories or it will fail.



    ------------------------------
    Chris Glazier
    Principal Technical Support Specialist
    Rocket Forum Shared Account
    Sunapee NH United States
    ------------------------------
    G

    This appears to be caused when the File Open/Save/Save As common dialog boxes are being displayed using the Net Express Dialog System screen painter. The Dialog System screen painter in Visual COBOL works just fine.

    A couple workarounds.

    Open up a NX command prompt and run the screen painter using the following command:

    DSWIN /RS screenset-name.gs

    This will output a file screenset-name.RS.

    You can also use File Explorer to change the compatibility mode of the DSWIN.EXE program under Properties-->Compatibility.
    You need to change the option Reduced color mode to 8-bit (256) color.

    You should then be able to save the file from the screen painter itself but don't use the drop-down list to change directories or it will fail.



    ------------------------------
    Chris Glazier
    Principal Technical Support Specialist
    Rocket Forum Shared Account
    Sunapee NH United States
    ------------------------------
    Thank you, now Works fine !
