Failed to create a vertica cluster with 8+ nodes

Hi,

Did you create the dbamin Linux user yourself or did the Vertica installer create it?

Some suggestions:

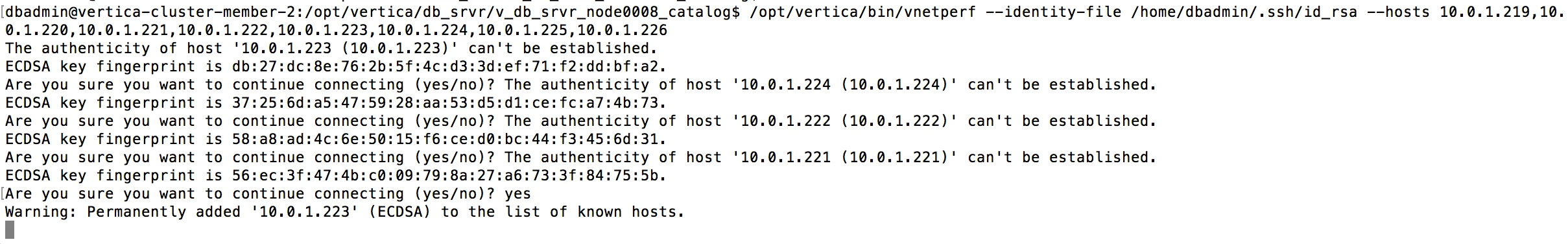

• Make sure that each node can ssh to all of the others nodes as the dbadmin user without a password. And you'll probably see those "fingerprint" errors on each node. Fix all of those. I think this is why vnetperf is not running on those nodes.
• On the node where you ran the Vertica installer, run the command "admintools -t list_allnodes" as the dbadmin user to list the status of the nodes.
• Did the Vertica RPM install on each node? Use the command "rpm -qa | grep -i vertica" to find out
• You might be able to distribute the config files via admintools from the node where you ran the installer. Run "admintools -t distribute_config_files"

I create a Trove Guest Image which is used to create Vertica cluster, the dbadmin user is created before running the install_vertica script.

For your first suggestion:
You're right. After I ssh to other nodes, then "fingerprint" errors is solved. Then, vnetperf can be run in all nodes.

For your second suggestion:

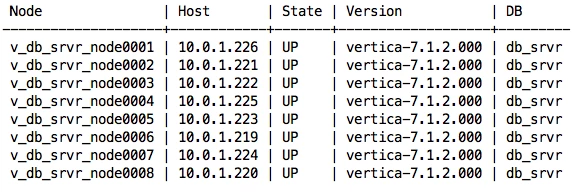

I run "admintools -t list_allnodes" in one of the nodes in the 8-node Vertica cluster, it shows me all nodes are in 'UP' status.

For your third suggestion:
All nodes should have installed vertica.deb as follows:

For the last suggestion:
It is able to distribute the config files as follows:
Intiating admintools.conf distribution...
Local admintools.conf sent to all nodes in the cluster.

After I solve the fingerprint errors, I restart the vertica cluster and it shows me the vertica database started successfully, but the 8-node Vertica cluster give me the error in vertica.log as follows:

2017-10-03 18:00:19.849 PartitionTables:0x7f03d4012cc0 @v_db_srvr_node0002: {threadShim} 08006/4539: Received no response from v_db_srvr_node0001, v_db_srvr_node0003, v_db_srvr_node0004, v_db_srvr_node0005, v_db_srvr_node0006, v_db_srvr_node0007, v_db_srvr_node0008 in transaction bind

Hi,

Fyi ... Vertica 7.1.2 is no longer supported. Could be an old bug you are seeing?

Are you sure you disabled the Linux firewalls or open up the ports required by Vertica?

See:
https://my.vertica.com/docs/7.1.x/HTML/index.htm#Authoring/InstallationGuide/BeforeYouInstall/iptablesEnabled.htm?Highlight=firewall

Also, when you installed Vertica, did you use the -T or --point-to-point option? This option is almost always better for a virtual environment.

See: https://my.vertica.com/docs/7.1.x/HTML/index.htm#Authoring/InstallationGuide/InstallingVertica/RunTheInstallScript.htm?Highlight=point-to-point

Thanks for your suggestions.

I still wonder why 2-node, 4-node and 6-node Vertica cluster can be created successfully, only 8-node (or more) Vertica cluster is failed to create.

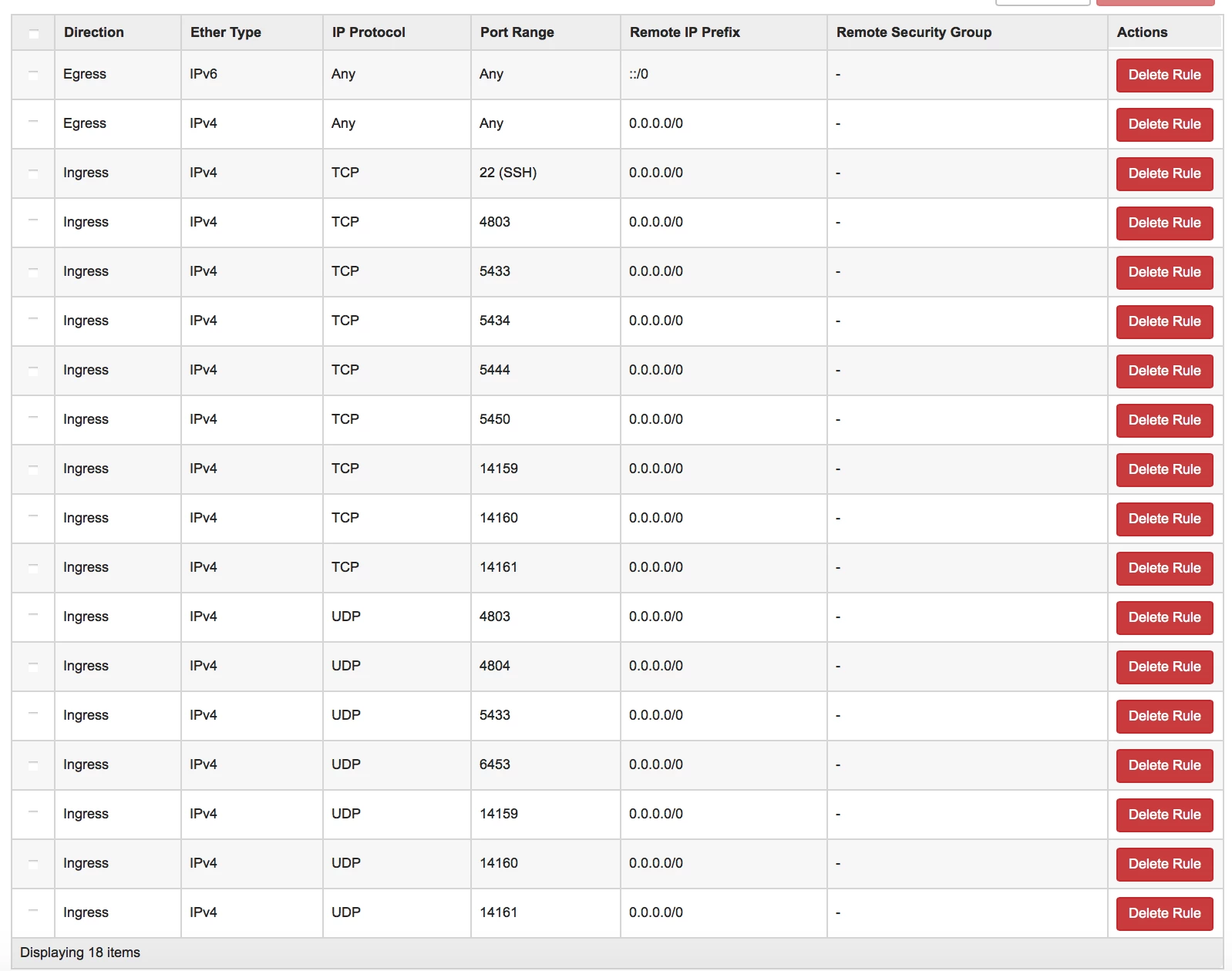

I have disabled the firewalls of VMs and physical machines. The ports are opened by Trove Taskmanager

I have changed the install_vertica command to "/opt/vertica/sbin/install_vertica -s %s -d %s -X -N -T -r /vertica.deb -L /vertica.dat -Y --no-system-checks --failure-threshold NONE", but it is still failed to create 8-nodes Vertica cluster.

I scan through all the logs in 8-node Vertica cluster and I list the logs here.

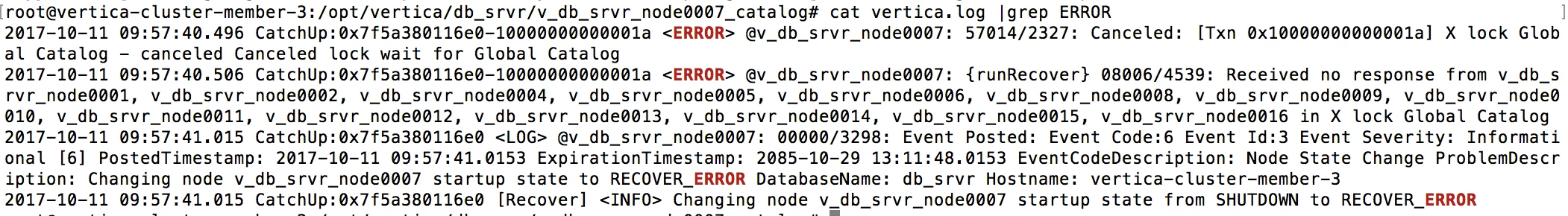

1. vertica.log
   The network socket experienced an error. This Spread mailbox will no longer work until the connection is disconnected and then reconnected

2017-10-08 06:22:23.027 CatchUp:0x7f340c00eb70-d000000000000e @v_db_srvr_node0004: {runRecover} 08006/4539: Received no response from v_db_srvr_node0006 in transaction bind
2017-10-08 06:23:19.437 CatchUp:0x7f340c00eb70 @v_db_srvr_node0004: 00000/3298: Event Posted: Event Code:6 Event Id:3 Event Severity: Informational [6] PostedTimestamp: 2017-10-08 06:23:19.437249 ExpirationTimestamp: 2085-10-26 09:37:26.437249 EventCodeDescription: Node State Change ProblemDescription: Changing node v_db_srvr_node0004 startup state to RECOVER_ERROR DatabaseName: db_srvr Hostname: vertica-cluster-member-8
2017-10-08 06:23:19.437 CatchUp:0x7f340c00eb70 [Recover] Changing node v_db_srvr_node0004 startup state from SHUTDOWN to RECOVER_ERROR

2. dbLog
   10/08/17 06:21:56 SP_connect: unable to connect via UNIX socket to /tmp/4803 (pid=4472): Error: No such file or directory

3. adminTools-dbadmin.log
   Oct 8 06:34:17 [5791] [vsql.connect] EOF ERROR: vsql: could not connect to server: Connection refused
   Oct 8 06:34:17 [5791] [vsql.connect] EOF ERROR:

4. trove-guestagent.log
   ERROR trove.guestagent.datastore.experimental.vertica.service [-] Vertica database create failed.

DB server is not installed or is in restart mode, so for now we'll skip determining the status of DB on this instance.

To simplify the situation, I now just create a Vertica cluster in the single physical machine. Now, it can create a 8-node Vertica cluster, but it is failed to create a 16-node Vertica cluster.

Hmm. Vertica should run on any commodity hardware. I can set up 1, 2, 4, 8 , 10 , x number of vm nodes on my laptop (i.e using Oracle Virtual box) .

What OS are you using?

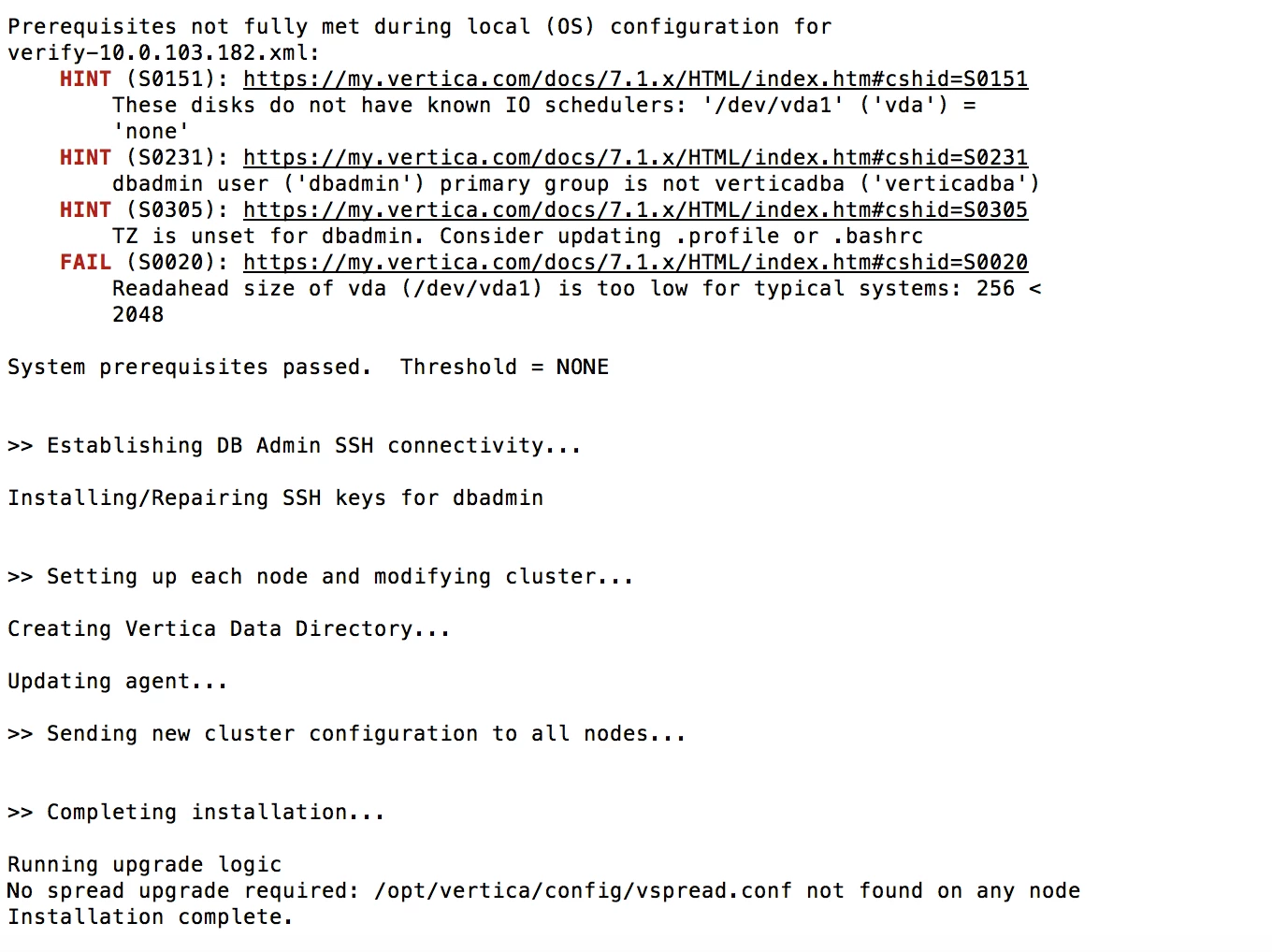

Hi，I install Openstack on a Ubuntu14.04 server and I use Trove to create database cluster. Since the database is failed to installed on 16-node cluster and I re-run the install_verticall script manually and it shows me this, is it necessary to fix this problem?

I use --failure-threshold previoiusly to hide those messages.

Additionally, it shows me this error in dbLog when 16-node Vertica cluster is built (no this error when creating 2,4,6-node Vertica cluster)

10/11/17 09:55:45 SP_connect: unable to connect via UNIX socket to /tmp/4803 (pid=10826): Error: No such file or directory

All 16-nodes of Vertica cluster are built on the same physical machine, so it should not be related to the network problem? (bandwidth of UDP and TCP)
