Trying to connect odbc driver from Unisys from visual cobol, getting the error "x114 item beyond access item beyond bounds of memory (signal 11)".

I have crated a system dsn  and trying to connect from cobol program like :

EXEC SQL
               CONNECT TO :svr USER :usr-pass
END-EXEC

I also tried to use the below format :

STRING 'DRIVER={Unisys MCP ODBC Driver(x86)};'
            'SERVER=xx.x.xx;'
            'PORT=2012;'
            'DATABASE=test;'
            'USER=xxxx;'
            'PASSWORD=xxxxx;' INTO BUFFER.
     EXEC SQL
       CONNECT TO :BUFFER
     END-EXEC.

The above is not recognizing the system DSN created and it is giving error  "The data source not found and no default driver specified" but while testing on the "ODBC data Source application", the connection is working fine.

Could some one help with what is needed to support unisys data source.

Hi Kayal,

What version of Visual COBOL are you using and under what operating system?

I have never heard of this driver.
By its name, Unisys MCP ODBC Driver(x86), I would assume it is 32-bit.
Is your COBOL program also 32-bit?

Thank you for the response.

The visual cobol version 8 with latest patch running on windows 64 bit ( windows server 2022). And I am running the cobol application is also ran as 32 bit.

For your format 6 connect statement using the string statement try:

EXEC SQL
       CONNECT USING :BUFFER
 END-EXEC.

I am not sure if it will make a difference but worth a try...

tried the format 6 as well.

tried the format 6 as well.

I am getting sql error : 00019703 with a message "DataSource name not found and no default specified". The document indicates the meaning of the error is could not make connection. We found that the connection is attempted using odbc 2.0 , Could you please help out what is needed to support this on the driver side.

OpenESQL uses ODBC V2.0 by default.

So no more 114 error?  That is progress.
That means that something in the connect string is wrong.

Can you please try removing the braces from around the driver name?

yes, but it is a progress.  I tried with our braces, no luck, same error.

Hi Kayal,

What version of Visual COBOL are you using and under what operating system?

I have never heard of this driver.
By its name, Unisys MCP ODBC Driver(x86), I would assume it is 32-bit.
Is your COBOL program also 32-bit?

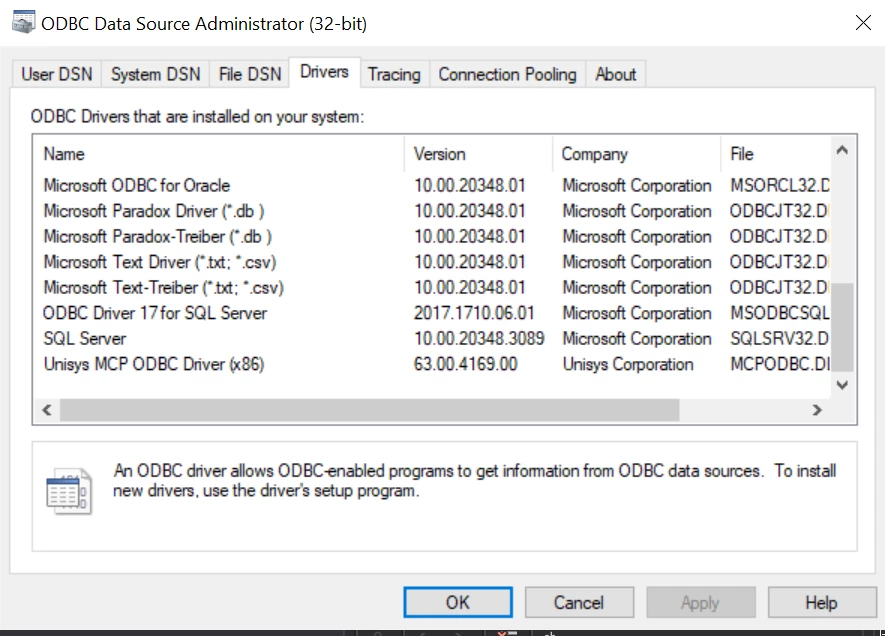

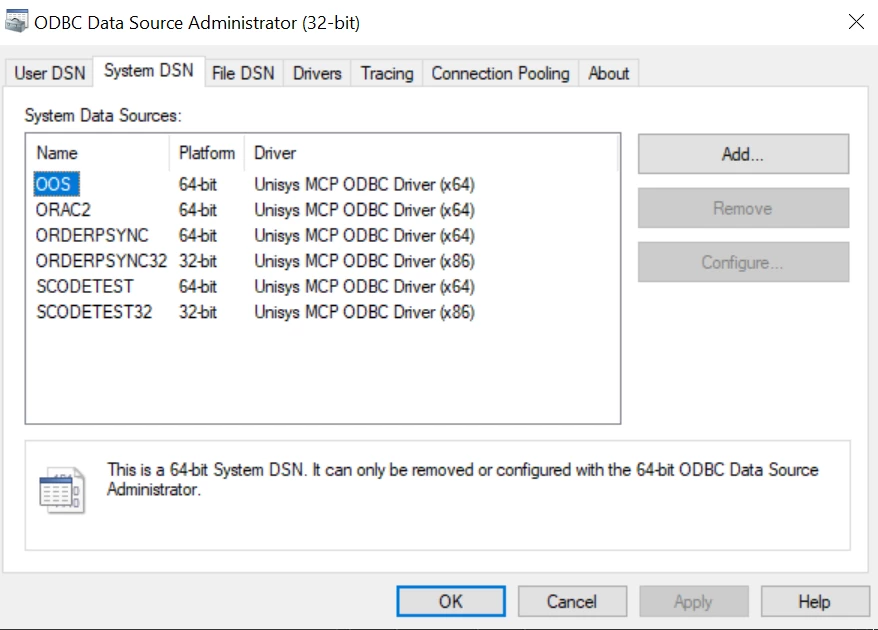

I am using the dsn name : SCODETEST32 , please find the driver details :

I am using the dsn name : SCODETEST32 , please find the driver details :

I have not set any directives specifically; it is the default one.  Let me try with your suggestion.

Thank you.

Hello Chris,

By using format 6 to call unisys driver is not even reaching to Unisys driver and we are getting sql error : 00019703 with a message "DataSource name not found and no default specified".   With the below method, we are

 EXEC SQL

              CONNECT TO :dsnname USER :usr-pass

 END-EXEC

I could see the call is coming Unisys driver and some reason we are getting "x114 item beyond access item beyond bounds of memory".  We would like to understand what is expected response for connect method.

Thanks,

Kayal

During CONNECT, we observed the sequence of  ODBC API call from visual cobol to the driver, and noticed SQLSetStmtAttr is where this error orginates.

SQLRETURN SQLSetStmtAttr( SQLHSTMT StatementHandle,

                                                   SQLINTEGER Attribute,

                                                  SQLPOINTER ValuePtr,

                                                  SQLINTEGER StringLength);

The NULL value is passed for valuePtr to the driver from COBOL , which is causing the issue.

I do not have your driver to test with, so I am testing with a SQL Server driver.
I have tried several different configurations and I am generating an ODBC trace and it in I do not see any calls to SQLSetStmtAttr.

SQLSetStmtAttr appears to be an ODBC V3.0 call and I believe that your driver is ODBC 2.0, which is the default for OpenESQL.

Can you possibly upload your MSSQLTRACE.LOG file that is generated for your connect statement so that I can compare it?

Thanks

Hello Chris,

You are right SQLSetStmtAttr is ODBC V3.0, and our Driver is following ODBC3.0.   Looks like the call from visual cobol is coming as ODBC2.0 API. Could you please suggest how to specify the visual cobol to use ODBC3.0 API standards to call our driver. Is there a directive that needs to be set?

Thanks in advance.

Try SQL(ODBCV3)

I have enabled the ODBCV3 version and sent the ODBC trace file for x114  error.

Regards,

Kayal

------------------------------
Kayalvizhi Ganesan
Unisys Corporation
------------------------------

I do not see the MFSQLTRACE.LOG file attached to your post.

Can you please attach it so that I may review it?

Thanks

Hope you received the trace for odbc trace file generated from visual cobol side sent over email.

------------------------------
Kayalvizhi Ganesan
Unisys Corporation
------------------------------

Hope you received the trace for odbc trace file generated from visual cobol side sent over email.

------------------------------
Kayalvizhi Ganesan
Unisys Corporation
------------------------------
